Distribution Boards
A distribution board, also known as panelboard or breaker panel is a component of an electricity supply system which divides an electrical power feed into subsidiary circuits, while providing a protective fuse or circuit breaker for each circuit, in a common enclosure. Normally, a main switch, and in recent boards, one or more residual-current devices (RCD) or residual current breakers with overcurrent protection (RCBO), are also incorporated.

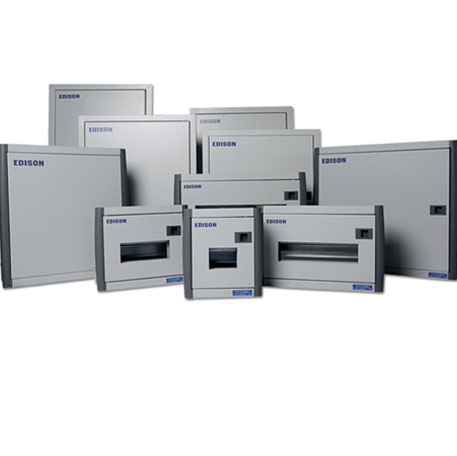

To meet these requirements Interplast introduces EDISON series SP&N Double Door distribution boards and TPN horizontal distribution boards, with increased safety and meeting the requirements of International standards – IEC 60439-3 and BSEN 60439-3.
Distribution Boards

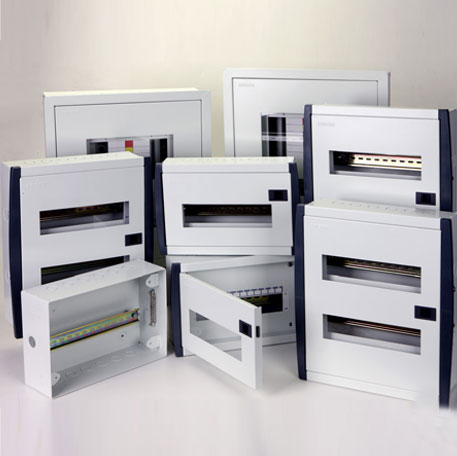

Edison SP&N vertical distribution boards are available in 7 sizes with a choice of 4, 6, 8, 10, 12, 16 and 20 outgoing ways, comprising of tin plated copper busbars, brass neutral and earth links to facilitate effective distribution of current. EDISON TPN distribution boards are available in 4 sizes with a choice of 24, 28, 32 and 36 outgoing ways, comprising of brass neutral and earth links to facilitate effective distribution of current.
Features
- Consumer units are designed to operate in ambient temperature between - 5°C to + 50°C and IP 40 degree
- Aesthetically superior distribution boards to suit any residential and commercial applications using low voltage installation.
- Suitable for multiple incoming options, MCB's, Isolators, RCCB's (2P, 3P & 4P) and can be used as main domestic consumer unit.
- Easy access, removable pan assembly, earth terminal holder, neutral link holder, and adjustable din rail.
- Blanking modules for unused MCB ways, provides secure shrouding of unused bus bar stubs for increased electrical safety.
- Generous wiring space, 16mm² terminal capacity for SPN DB's earth & neutral bars, 25mm² for TPN vertical earth and neutral bars.
- Removable Pan Assembly in TPN Distribution Board for ease of installation and maintenance.
- In TPN vertical DB's unique adjustable system is provided for aligning back plate depth to distribution board cover.
- 3 Piece Concept for ease of maintenance, only intermediate plate
- Clear earth marking for ease of installation.
Range
SPN 1 Row - 4, 6, 8, 10, 12, 16, 20 Way
SPN 2 Row - 12 x 2, 16 x 2, 20 x 2 Way
TPN Horizontal - 04, 06, 08,12 Way
TPN Vertical - 04, 06, 08, 12 Way
Colour
Fully powder coated DB in RAL 9003 light grey color, matt finish with 60-80 micron powder coating thickness.
